  1. Bolt Norge
9 August 2013

Bondura Technology vs a Conventional Pin Connection

Anybody involved in mechanical design or within the repair and maintenance business knows the problems that occur over time in mechanical joints. Because of the need for assembly tolerances, a pounding effect starts to develop on the supports. The result is often noticeable after only a few hours of operation as an oval shape starts to appear in the connection.

So, why do engineers and designers still design these types of connections? Perhaps these are some of the reasons:

  1. Bondura® technology is not well known enough
  2. Designers continue to design in the same conventional ways as before
  3. It is the way engineers have been taught at university
  4. Designers do not know that other technology exists
  5. Manufacturers earn a lot of their revenue from the aftermarket

The effect that happens in mechanical joints is outlined below, including the stress applied to the pin/support connection, the assembly tolerances and their effect on the stress level.

The effect of the assembly tolerance and creation of play in a mechanical joint

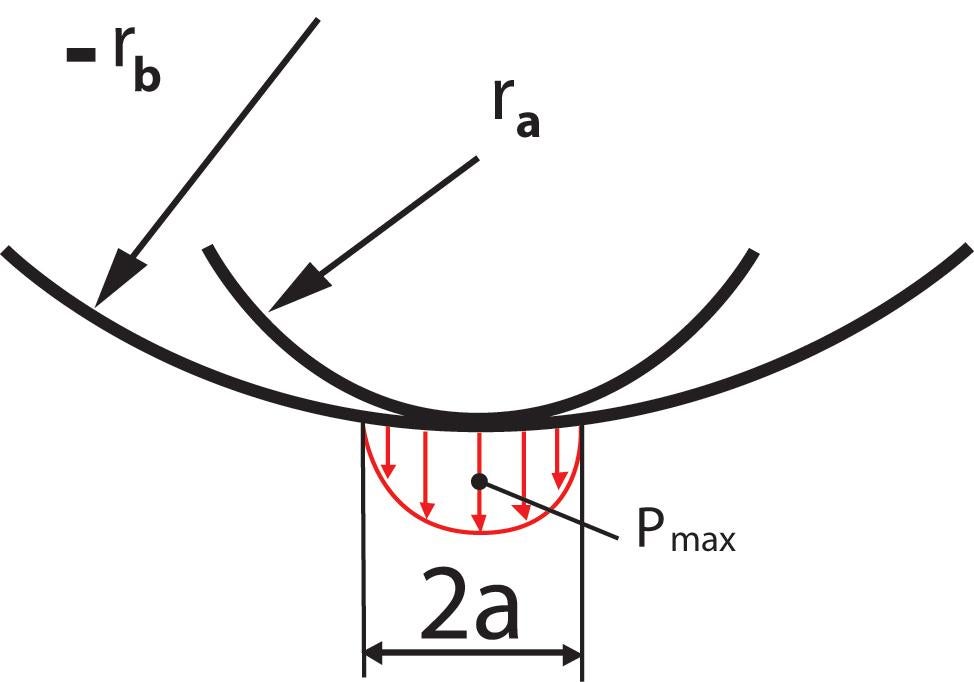

The existing tolerance between pin and support creates the basis for the contact surface, and thereby contact stress in the supports is created. The contact surface between pin and support is reduced significantly by increasing the level of tolerance between pin and support. The following example of circular contact surface illustrates this assumption:

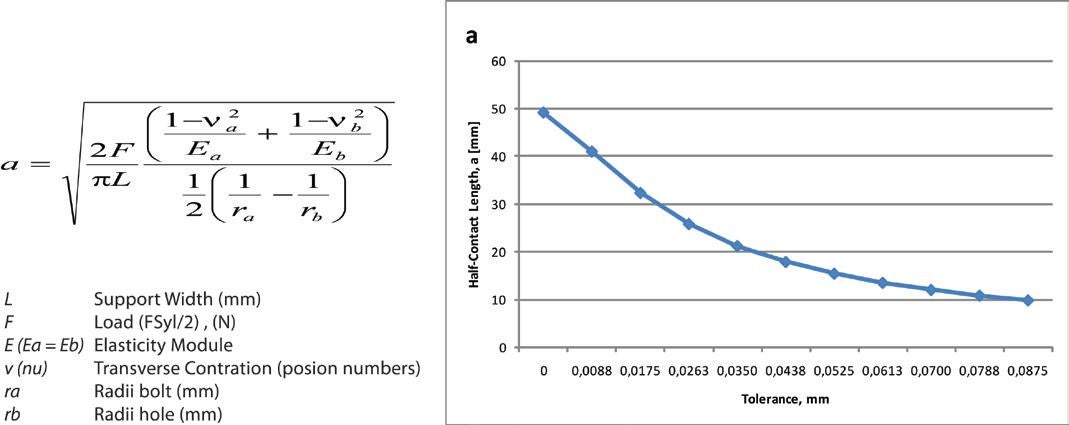

The ever-present contact surface can be derived by the projected contact length (a) in the Hertz contact formula:

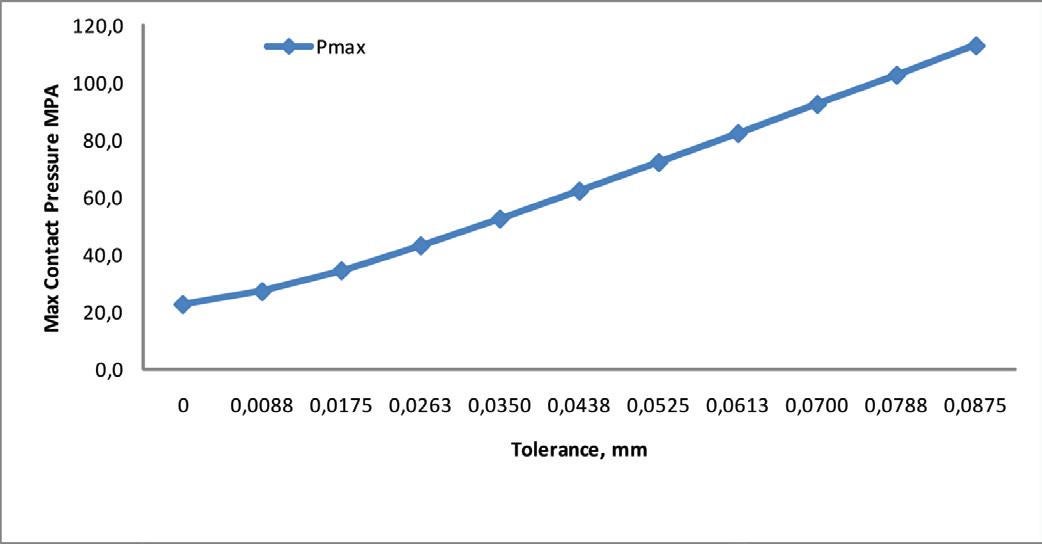

An increase of assembly tolerance from 0.04mm to 0.1mm will reduce the contact surface between pin and support by 78%, increasing contact stress four times.


The Bondura technology makes it possible to use a large degree of assembly tolerance. When Bondura is assembled, the tolerance is close to 0, the same as a press fit. The result is a contact surface of 360° and a load surface in the support of 180°.


As seen from the theory, this is why problems will develop over time in all conventional mechanical joints, as long as engineers continue to use conventional pins in their design. The conventional pin has been used as the only possible solution to these kinds of joints over the last century or even longer, but why?

Bondura technology has been developed over 25 years and has a number of success stories from a wide variety of industries during this time. It can be found in offshore and onshore drilling systems, pipe handling systems, cranes, heavy machinery in the mining industry, power plants and wave energy systems as well as in garbage truck dumping systems and more.

The Bondura technology will be established as the new industry standard for all kinds of mechanical joints where there are heavy loads involved, or if you require a firm and precise joint lasting over the lifetime of the equipment.

Companies that are very reluctant to switch from conventional pin solutions are the ones that get their revenue from repair and maintenance of this kind of equipment. In many instances, these companies are also used as consultants about new technology like Bondura. As long as they view Bondura as a competitor and not a solution, they will never be in a position where they can recommend this as a new industry standard.

It has been a long-lasting battle and we will continue to work with the end users that really appreciate the effect of using Bondura. This technology will save the end user a lot of money, helping them avoid downtime on heavy machinery and expensive equipment. Our goal is that it will become a requirement from the end user to the manufacturers to use this available technology in all suitable mechanical joints.

Preparations: Remove any burr. Clean the support.
The Bondura bolt is type-approval certificated by DNV and follows guidelines by API specifications 8c, DNV rules for lifting appliances, FEM rules for heavy lifting...
