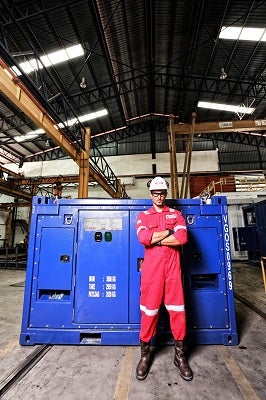

Diesel-Driven Air Compressor – Zone 2

Equipment Description

• Equipment Name: Diesel Driven All Compressor-Zone
• Manufacturer: VG Offshore Containers Int.
• Model: Vayu
• Sound Proof Enclosure: Yes, 85d at 1m
• Rating (scfm): 185scfm to 1,600scfm
• Rating (spig): 110 psi to 175 psi
• Engine Make: JCB/CAT/Cummins
• Starting kit: Spring Starter/ FlectrIc Starter/ Air Starter /Hydraulic Starter

Hazardous Area Rating

• Zone: 2
• Gas Group: IIA
• Temperature Class: T31 (less than 200°C)

Operator Panel Instrumentation

• Coolant temp. gauge: Yes
• Exhaust temp. gauge: Yes
• Lube oil gauge: Yes
• RPM Meter: Yes

Fire Protection

• Passive: Continuous Steel Construction; Penetration via A60 MCI, Inlet/ outlet shutoff dampers
• Active: Fixed fire extinguishing system (Optional)

Fire & Gas / ESD (optional)

• Gas detector: Yes (Nr Intake)
• Flame detector: Yes (Inside enclosure)
• ESD (local): Yes, Hand Switch
• ESO (remote) Yes, 24Vdc

Visual and Audible Alarms (Optional)

• Flame Detection Yes (Local/remote)
• Gas Detection Yes (remote)

Global Compliance

• DNV 27-1 / BS EN12079: Yes
• DNV 27-2:2013: Yes
• IECEx: Yes (Equipment level)
• ATEX: Yes (Equipment level)

Hook-up Details

• F&G/ESD Interface: Junction Box (FJM)
• Air Outlets: 20A (0.75in) x 2pcs

Engine Safety Systems

• Control System: Electrical / Electro-Pneumatic/ Hydraulic / Pneumatic
• Over speed Control: Yes
• Exhaust Temp Control: Yes
• Low level Oil Control: Yes
• Coolant Temp Control: Yes
