GIW Minerals

Slurry Pumps for Hydrotransport and Oil Sands

5000 Wrightsboro Road, Grovetown,GA 30813, United States of America

5000 Wrightsboro Road, Grovetown,GA 30813, United States of America



GIW manufactures reliable and robust slurry pumps, while also delivering transport solutions to the oil sands industry.

The process of extracting bitumen from the oil sands is challenging, requiring pumps to be wear-resistant. GIW is dedicated to technological innovations, providing rugged, cost-effective slurry pumps and maintenance services that extend pump life.

With more than 30 years of experience helping Canada process oil sands bitumen, the GIW Minerals TBC pump is now one of the most operated heavy-duty slurry pumps in the Canadian oil sands industry.

High-performing slurry pumps

Recurrent unscheduled shutdowns due to underperforming pumps are both expensive and disruptive to operations, yet downtime is a regular occurrence for many operators in the oil sands industry.

Work at a major oil sands operation near Fort McMurray was unsettled by frequent unplanned outages, leading to increased frustration and expenses.

Despite first-stage hydrotransport pumps having a reputation for being durable against severe wear, the competitor’s pump used during this operation was barely able to handle 1,300 hours of runtime, falling short of a target of 4,000 hours before components required repair or replacement.

Rather than allow downtime, maintenance, labour and parts cost to mount any further, operators sought help from the experts at GIW.

The competitor’s pump was replaced with a custom-designed TBC-67 High-Pressure Pump, designed to be better suited to the aggressive wear and longer runtimes required for operations.

Data and on-line measurement techniques were utilised by GIW in order to provide a pump solution, which surpassed that of its competitors. GIW manufactured its solution using advanced materials and a custom hydraulic design tailored to the customer’s specifications.

During scheduled shutdowns, GIW’s TBC-67 pump totalled 4,800 hours of runtime, significantly exceeding the target.

Automated pump maintenance to optimise operations

In order to achieve optimal pump operation in rigorous applications, precise maintenance must be provided. A key maintenance procedure involves the adjustment of internal clearance between the pump impeller nose gap and suction liner

Remotely Adjusted Mechanical Suction Liner (RAMSL) technology allows for the mechanical control of suction liner adjustments during operations, which allows maintenance personnel to work more efficiently and quickly. Whereas traditionally adjustments had to be performed using hand tools near the rotating equipment, taking a full crew 32 weekly hours to complete, RAMSL technology makes it possible to achieve this with the push of a button.

Additionally, critical pump data such as real-time vibration readings collected by the RAMSL technology allows operators to make assessments without shutdowns.

Customer support and maintenance services for oil sands pumps

The KSB SupremeServ facility located in the Alberta oil sands is responsible for maintenance and refurbishment services for pumps and other rotating equipment.

Our focus on system analytic technologies and new wear programmes allow us to solve problems in the field before they occur.

You can count on GIW to provide personal assistance when and where you need it, either on the job site or at the service centre. This means you can spend more time running your business and less time worrying about equipment malfunctions.

Service solutions include:

  • 24/7 emergency service and on-site repairs
  • Asset management and qualification
  • Parts wear analysis
  • Pump system analysis
  • Preventative maintenance programs
  • Turnkey removal and installation

About KSB and GIW Minerals

GIW is a subsidiary of global pump and valve manufacturer KSB SE & Co KGaA, enabling worldwide supply.

KSB aims to be an innovative partner through the GIW Minerals product brand, providing highly effective and long-wearing slurry solutions.

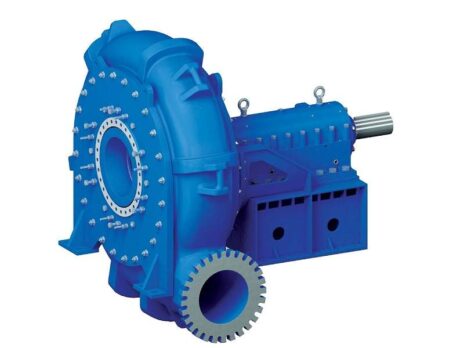

MDX Mill Duty Extra Heavy Pumps

MDX extra heavy-duty pumps are made for the challenging conditions of mill processing. The pumps can be customised for reduced eye suction liners, quick release wet end, full vanes to fit oversize shrouds, and adjustable liner assemblies.

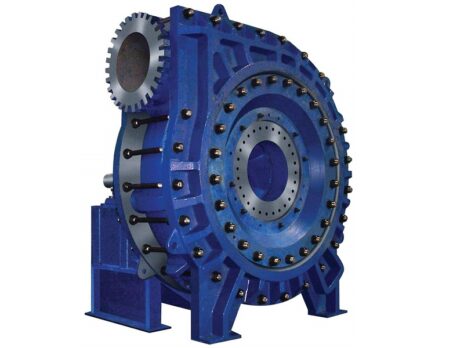

TBC Severe Duty Slurry Pump

The GIW Minerals TBC is currently the most operated severe duty slurry pump in the Canadian Oil Sands Industry.

ZW Double-Suction Vertical Pump

GIW’s ZW vertical pumps are suited for pumping highly abrasive slurry, as well as applications such as dewatering, floor clean-up and process transfer.

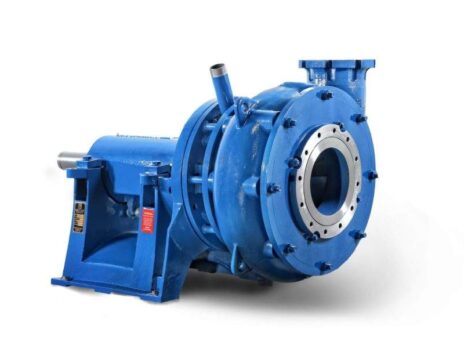

High Volume Froth Pump

GIW’s high volume froth (HVF) pump is designed to service air entrained slurries.

LCC High-Performance Pumps

GIW offers LCC pumps featuring Corbrasion™ resistance, designed for the most corrosive applications and abrasive slurry, as well as coarse and fine particles.

LSA Heavy-Duty Pumps

GIW’s LSA pump series is low maintenance and abrasion resistant, suited for heavy-duty applications and industries.

This is GIW

Introductory video to GIW products and services.

Fort Hills Oil Sands Project, Calgary, Alberta

The Fort Hills project is an integrated oil sands project that includes a mine that was approved in 2002 by Alberta Environment and the Alberta Energy and Utilities Board, as well as a bitumen extraction facility, situated 90mi north of Fort McMurray in Alberta (Athabasca oil sands region), Canada.

Kearl Oil Sands Project, Alberta

The Kearl oil sands project is located 70km away from Fort McMurray in Alberta, Canada. The onshore field is owned by Imperial Oil and ExxonMobil. Imperial Oil is the operator of the project.

What is Vane Pass?

Pumps experience a wide variety of pressures and loads during operation, and it is important for operators to know how and when they occur. “Vane pass” is no exception. This term refers to the pressure pulsations generated within the pump as the impeller vanes pass the cutwater.

GIW Launches the TBC-92

GIW Industries, Inc., a company engaged in the design, manufacture, and application of heavy-duty centrifugal slurry pumps has launched the GIW TBC-92 slurry pump for operation in the oil sands.

Settling vs Non-settling Slurries

Understanding how solids within a slurry behave is important when it comes to efficient pumping. The slurry can be either settling or non-setting, depending on particle size, concentration, distribution and character of the solids.

GIW Announces Safer Solution for Automated Pump Maintenance

GIW Industries Inc, leader in the design, manufacture and application of heavy-duty centrifugal slurry pumps, announced the Remotely Adjusted Mechanical Suction Liner (RAMSL) product enhancement for the GIW® Minerals MDX Pump.
