Cleveland Cable|10 February 2015

EPR Cables

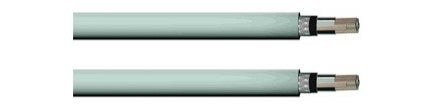

EPR cables

This range of cables is designed to provide superb flexibility and have the capacity to withstand weather, oil, greases, mechanical and thermal stresses.

With unique flexible properties, installations can be found across a wide spectrum from handling equipment, work sites, stage and audio visual equipment, drainage and water treatment, cold environments and industrial applications.

  • Marine and offshore cable – EPR overall screened – UKOOA, BS 6883

Tinned stranded circular copper conductor to BS 6360 Class 2 EPR, GP4 insulation to BS 7655:section 1.2 colour coded cores twisted to form a pair, triple or quad-wrapped with polyester tape. Collective screened with aluminium backed polyester tape complete with tinned copper drain wire.

Flame-retardant, halogen-free bedding, PET tape and rubberised polyamide tape inner covering, galvanised steel wire braid armour, PET tape and rubberised polyamide tape over armour, flame-retardant, halogen-free, enhanced oil-resisting thermosetting compound (LSF) SW4 outer sheath to BS 7655 section 2.6.150V/250V grade manufactured to BS 6883 and UKOOA design flame retardant to IEC 60332-1 and IEC 60332-3-22. Halogen free to IEC 60754-1,2 and low smoke to IEC 61034-1,2

  • Marine and offshore cable – EPR individually screened – UKOOA, BS 6883

Tinned stranded circular copper conductor to BS6360 Class 2 EPR, GP4 insulation to BS 7655:section 1.2 colour coded cores twisted to form a pair, triple or quad wrapped with polyester tape.

Each pair individually screened with aluminium backed polyester tape complete with tinned copper drain wire. Flame-retardant, halogen-free bedding, PET tape and rubberised polyamide tape inner covering, galvanised-steel wire braid armour, PET tape and rubberised polyamide tape over armour, flame retardant, halogen free, enhanced oil resisting thermosetting compound (LSF) SW4 outer sheath to BS7655 section 2.6. 150V/250V grade manufactured to BS 6883 and UKOOA design flame retardant to IEC 60332-1 and IEC 60332-3-22. Halogen free to IEC 60754-1,2 and low smoke to IEC 61034-1,2.

As is illustrated within our catalogue, we stock a comprehensive range of cables for every conceivable application.
