The Subsea Company offers subsea solutions with a focus on marine riser components and subsea controls. The company’s aim is to provide the offshore industry with innovative, user-friendly and reliable subsea equipment.

BOP drifts for minimizing downtime

By drifting blow-out preventers (BOP), contractors, oil companies and OEMs make significant revenue savings.

The Subsea Company’s API Drift helps to minimize your downtime. Drifting your BOP during rig acceptance, factory acceptance testing and after BOP repairs can save you money.

Using BOP drifts can result in significant savings in time and money.

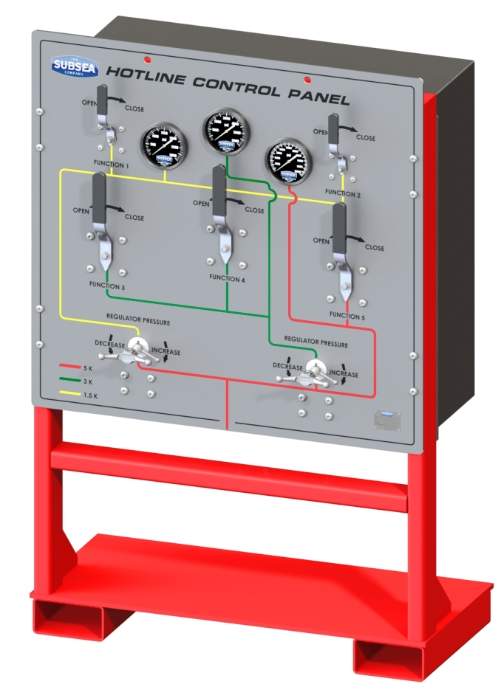

The 5K rated Hotline Control Panel provides three independent circuits for quickly and safely testing hydraulic equipment topside. The 316 SS panel fully encloses all plumbing, 5 control valves and two manually adjustable regulators.

The BOP Fluid Conditioning & Monitoring System is designed to continuously recirculate the mixed BOP fluid while exposing it to a series of filters and UV light. The pH and conductivity of the fluid is then recorded on the data logger for trending and alarm purposes.

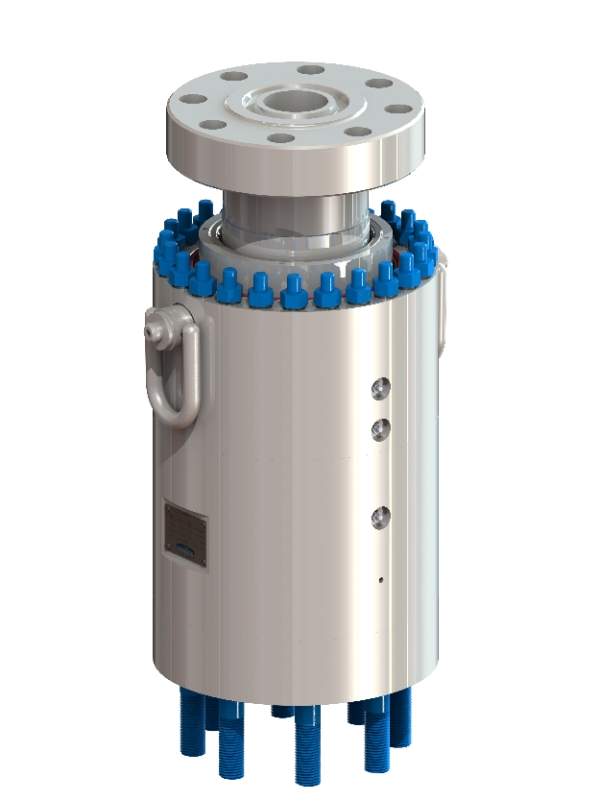

Our swivels are designed for long life under extreme lateral and linear loading. 15K Choke & Kill, 5K Hydraulic and 5K Mud Boost Swivels are currently in production.

The Subsea Company’s pressure gauges are corrosion and chemical-resistant.

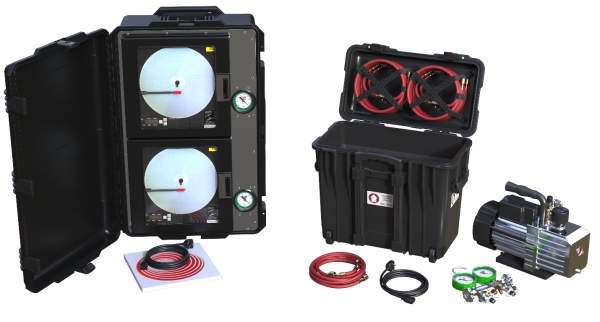

The Vacuum System is a kit specifically designed for the subsea engineer / specialist to draw a vacuum on a single or two pieces of equipment and produce a chart record. One case contains the pump, hoses and manifold with vacuum gauge, the other two independent electronic chart recorders.

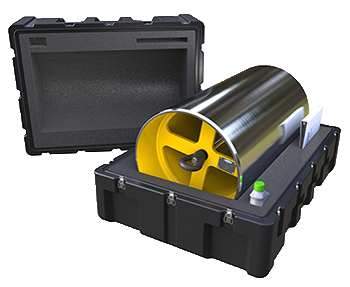

TSC-01013 BOP Drift.

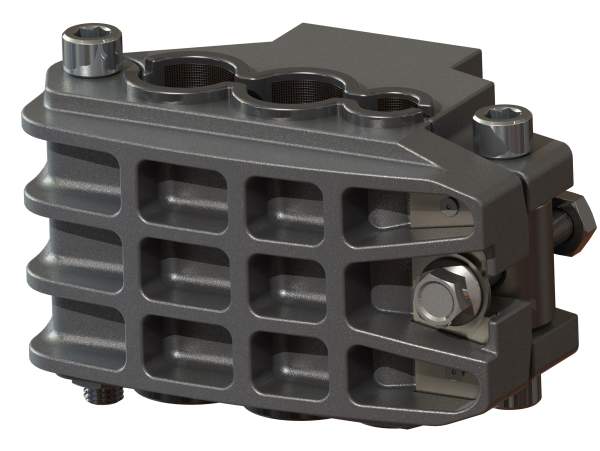

Plastic DGD clamp.

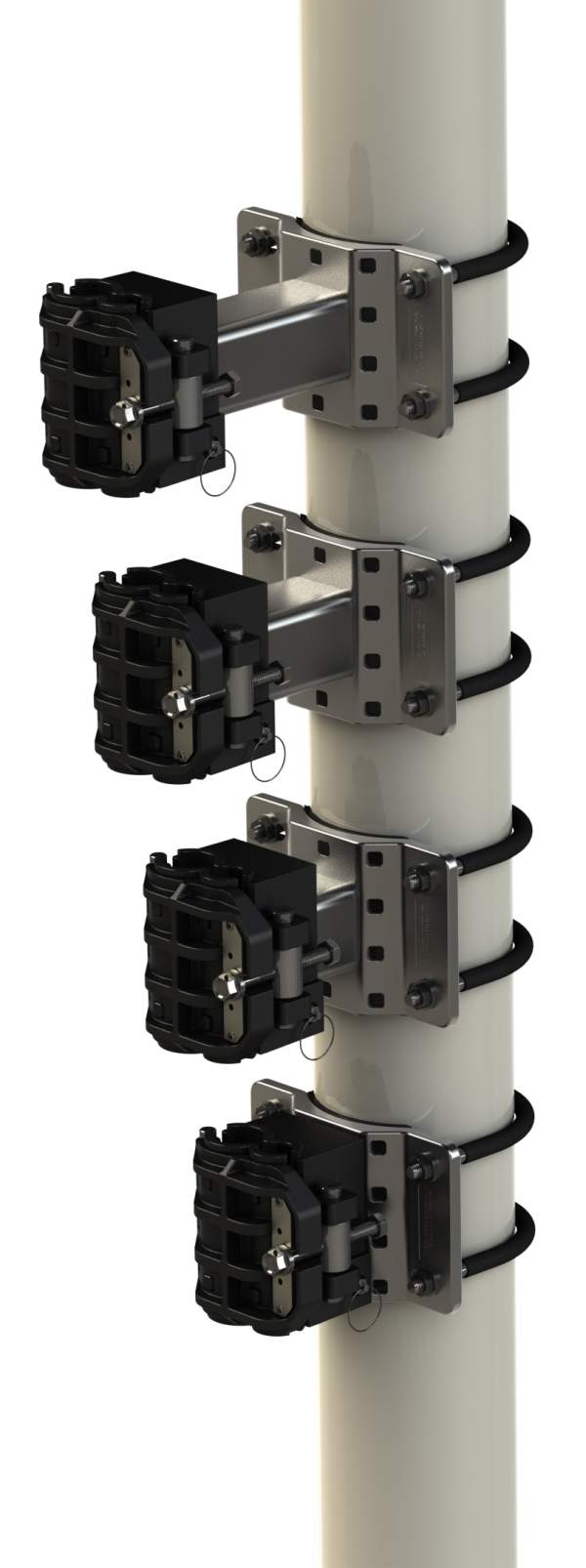

Various lengths of clamps.

The hydraulic data logger is lightweight and portable.

Advantages of the API Drift include:

• Rugged and durable
• 16 API solutions
• Pull tested and certified
• Convenient storage containers

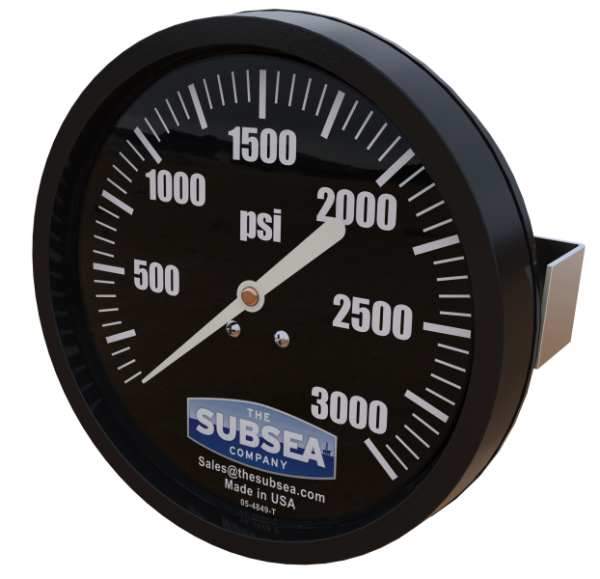

Subsea pressure gauges

The Subsea Company’s subsea pressure gauges are all individually calibrated, hydrostatically tested and certified for deep-water operation. Along with the advanced bourdon tube design, flexible Zytel case and internal breathing diaphragm, this provides unequaled reliability and depth compensation for all subsea gauge requirements.

Benefits of these subsea pressure gauges include:

• Certified and tested at subsea depths
• Corrosion and chemical-resistant
• Pressure compensated
• Panel or fitting-mounted
• Three dial sizes (2.5in, 3.5in and 4.5in)
• Rugged Zytel case

Lubricants for harsh conditions

Subsea lubricants are designed to withstand wear, corrosion and galling issues in tough offshore and underwater conditions. Their unsurpassed performance saves you time and money. The Subsea Company’s lubricants are specially designed to combat corrosion, extreme pressure and heavy loads.

Key features of subsea lubricants include:

• Special formulations
• Superior anti-seize and corrosion control
• Extreme pressure performance
• Eco-friendly
• Seals and protects
• Convenient packaging

Subsea RB is a riser bolt anti-seize lubricant containing 70% molybdenum disulfide for uniform lubrication and easy make-up and break-out of threaded connections. Subsea RB is primarily used on drilling rigs and offshore installations for maximum protection against oxidation.

Subsea SS is a stainless anti-seize lubricant containing 45% lubricating solids for a strong adhesion to all metal surfaces. Subsea SS is ideal for subsea applications and any application where washout is a concern.

Subsea SN is a stainless anti-seize NPT lubricant designed to prevent galling on NPT stainless steel threaded connections. Capable of sealing to 20,000psi, the high concentration of PTFE eliminates the need for Teflon tape.

Subsea SO is a stainless anti-seize O-ring lubricant, formulated with elastomer compatibility in mind. Subsea SO is insoluble and has a high dielectric strength for applications where electric conductivity is a concern.

Marine riser components

When operating marine drilling risers, an extensive amount of engineering analysis is required to ensure a safe and reliable project.

The Subsea Company designs and manufactures riser components, riser clamps, thrust collars, MUX clamps and storage racks.

Standard MUX clamp

The MUX clamp is designed to clamp cables and hoses in place during drilling operations. The Subsea Company’s standard MUX clamp can be mounted in a variety of ways to suit customer requirements.

Features and benefits of the MUX clamp include:

• Fast delivery
• 2,000lb bi-directional grip pull test
• Variable length extension arm sizes up to 9.75in from the edge of the pipe
• Light composite weight
• Optional storage rack
• 316 stainless-steel base and extension
• Dual pull rings for quick mounting
• Optional riser clamp mounting adapter
• Custom designs available
• Fits pipe sizes ranging from 5in to 7in

Hot stabs for offshore operations

Subsea ROV hot stabs are designed, manufactured and engineered according to API 17H standards.

Advantages of the ROV hot stabs include:

• Main body constructed using Nitronic 60
• Handles and fasteners fabricated from 316 stainless-steel
• Rated to 10,000psi working pressure
• High-flow version available
• Single and dual port configurations

Signature tester for surface equipment

The Subsea Company’s hydraulic data logger is designed to improve equipment reliability. The data logger assists personnel in carrying out performance-based testing. Signature testing is a proven method for identifying anomalies and reducing instances of costly failures.

The data logger is ideal for testing BOPs following repairs and maintenance, factory acceptance and on-hire testing of critical equipment, and testing of hydraulic equipment, including surface equipment.

Benefits of the hydraulic data logger include:

• Lightweight and portable
• Eight channels
• 0K-10K pressure range
• Detection of erratic operation and avoidance of age-related failures
• Reduction in maintenance expenses
• Reduction in rig downtime
• Ethernet port for communication with external laptop

About The Subsea Company

Established in 2008, The Subsea Company is based in Houston, Texas, US, with a 28,000ft² facility.

The company provides solutions for profitable operation of drilling systems by addressing safety, performance and downtime issues, in order to deliver the highest quality at the best value.
