Ram Luffing Cranes (RL)

Liebherr RL Series

Ram luffing (RL) crane

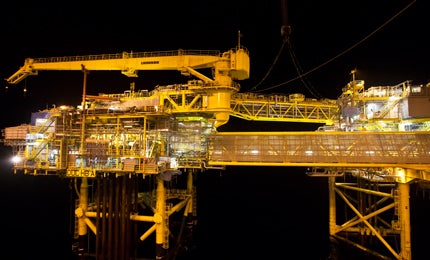

A weight-optimised and compact design with a load bearing capacity up to 100t make the ram luffing crane (RL) from Liebherr an ideal piece of equipment for small and unmanned platforms or floating storage vessels.

The RL is a safe and reliable state-of-the-art slewing bearing offshore crane with cylinder luffing system and fix boom box. The crane can be powered electro-hydraulically or diesel-hyrdaulically and is available for explosive areas in accordance with the requisite classification and is suitable for both floating and fixed applications. The luffing system is operated by one or two hydraulic cylinders.

Specifications

  • Overturning moment: from 650tm to 4,200tm
  • Main hoist capacity: from 8t to 100t
  • Boom length: from 18m to 54m
  • Slewing range: 360° unlimited
  • Drive system: electro or diesel-hydraulic
