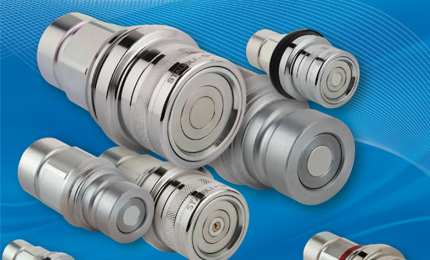

SPX: High-Pressure Flush-Face Quick Coupling

Staubli

Clean break, robust and easy to handle, SPX quick couplings are ideal for hydraulic connections in challenging environments. The non-spill, flush-face design ensures that no air enters the circuits. The couplings are also environmentally friendly, as they prevent the escape of contaminants into the work area. A high number of locking balls ensure a robust lock with a large-surface contact area.
The SPX range is very comprehensive, offering numerous possibilities to customize the solution to your specific application.

Fluids:

  • Oil

Construction:

  • High mechanical-strength stainless steel (standard)
  • High mechanical-strength and high corrosion-resistant stainless steel (optional)

Other features:

  • Color coding
  • Anti-dust protection
  • Metal protective dust caps
  • Connection under residual pressure (optional feature)
  • Panel mount version available

Key Data:

  • Bore diameters: 6mm, 8mm, 12mm, 16mm
  • Maximum working pressure: 450bar
  • Operating temperatures: -15°C to +150°C
