The Liebherr RL-K 7500 Subsea Crane Goes On A Long Journey
Last September, the test bed in Rostock was the stage of a spectacular single lift of the RL-K 7500 subsea crane. The same crane was now loaded and shipped to the South Korean customer.

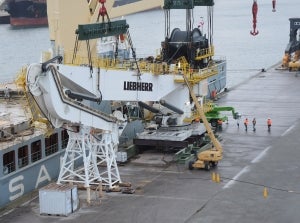

In the longest night of the year, on 21 December, a new Liebherr RL-K 7500 started its long journey to South Korea. Since the middle of September the subsea crane had been waiting for its shipment at the pier of the Liebherr factory in Rostock.
Mid-December, the transport ship finally arrived at the Liebherr factory and the RL-K 7500 was safely loaded aboard together with another model of Liebherr’s range of knuckle boom cranes, the RL-K 4200. Both cranes are currenty on the way to Daewoo Shipbuilding & Marine Engineering (DSME). DSME plans to equip several of its ships with a set of Liebherr cranes consisting of one RL-K 7500 and three RL-K 4200. The two other RL-K 4200 will follow in the first quarter of 2015.
The new subsea crane with knuckle boom represents a convenient solution for subsea operations. Together with the crane’s prototype, the above mentioned RL-K 7500 is already the fourth model to be completed. It features impressive technical figures, being able to lift up to 300t in the air and handle loads down to a water depth of 3,600 m. The maximum rope diameter is 82mm; the maximum overturning moment of the crane is 75,000kNm. Depending on customers’ specifications, the boom configuration allows for working radii of up to 50m.
One vital advantage of the crane’s knuckle boom is that loads can be lowered to the water surface with a short rope length between crane boom head and water line. Furthermore, the crane is equipped with a number of state-of-the-art hydraulic, electric and electronic features and functions, some of which were submitted for patent by Liebherr, for instance Heavetronic®, Pactronic® and the innovative winch system.
Heavetronic® – Liebherr Active Heave Compensation-System (AHC)
Based on sophisticated Motion Reference Units (MRUs), for example, sensors designed in-house to recognise and predict the vessel’s motion, the AHC system compensates this movement. In order to meet the high power demands of the AHC the innovative hydraulic hybrid drive system Pactronic®, originally developed for Liebherr mobileharbour cranes, was specially adapted for subsea applications. Pactronic® is characterized by an additional energy storage device.
A hydraulic accumulator supplements the fluid pump in delivering power to the system. It serves as a pressure storage reservoir incorporating a gas in conjunction with a hydraulic fluid. Energy is stored in this compressed gas to be released upon demand.
The revolutionary AHC system is fully integrated in the proven Litronic® system. One of its most important features is its self-learning function. It automatically recognises the vessel’s motion and adjusts itself according to this information. Hence, the system does not need to be manually adjusted and is independent of weather conditions. Up to 70 % of the power required to operate the AHC system is currently obtained from Pactronic®. This means that the hybrid drive system provides a maximum power of almost 4MW.
Innovative winch technology
In order to ensure optimised rope guidance, the crane has a patented horizontal winch shifting system. It guarantees the ideal fleet angle of the rope under all load conditions in both hoisting and lowering operations.
A further innovation is the vertical winch frame lifting system, which is also patented. Two hydraulic cylinders allow for the adjustment of the lifting height without moving the drum of the hoisting winch. Due to this innovative design of the winch unit, which is based on many years of experience and profound knowledge of Liebherr crane technology, wear of the main wire rope is minimised, thus significantly extending its service life and reducing lifecycle costs.
Easy adjustment to customer requirements regarding load and water depth can be made by exchanging the lebus shells and by adapting the width of the winch to the actual rope diameter. Consequently, the customer is not obliged to change the complete hoisting winch.
With the RL-K 7500 Liebherr offers an innovative crane concept for subsea applications. The RL-K 7500 can be rated both as general purpose offshore crane and as heavy lift crane, being able to hoist loads weighing up to 300t. It can thus be installed on board drill vessels and heavy lift vessels. The knuckle boom is designed for use in hazardous areas. The crane can additionally be equipped with an Arctic temperature package allowing for operation at temperatures down to -40°C.
For more information, please contact Liebherr.
