DULCODOS® Universal Metering Systems

Flexibility, low costs, fast delivery and easy commissioning – when it comes to complex metering tasks, these are the benefits users are looking for. And with the new metering system Dulcodos universal, that’s exactly what ProMinent delivers! The Heidelberg-based manufacturer will unveil the new system at at BrauBeviale 2016 in Nuremberg between 8 and 10 November 2016, at stand 6-351 in Hall 6. The system is fitted with the optimum pump for each specific application.

Essential components such as pipes, relief valves and electrical parts are pre-configured. The pipework, which is compatible with the feed chemical, and parts that come into contact with chemicals are made from PP/FKM or PVC/EPDM.

The metering system can be configured for one or two points of injection depending on the customer’s requirements. This can be achieved with a new kind of valve block or with one or two pumps tailored to the application.

But, of course, the most important component in any metering system is the metering pump, so depending on the task in hand a solenoid driven metering pump Beta® 4 or 5, delta® or gamma/ X is integrated. The various pumps offer a flow rate of 2.3ml/h-75l/h at a back pressure of 10-2 bar.

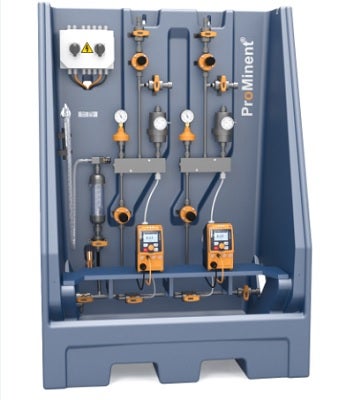

Every system is equipped with two relief valves, a collecting pan with leakage sensor and a calibration tank for controlled metering to ensure high operational safety. The assembly frames are available in six standard colours. The metering systems are 1,700mm-high, 1,200mm-wide and 635mm-deep.
